CURTAIN WALLS SERIES

Aluminium facades, also referred to as aluminium curtain walls, are exterior building systems that use aluminium frames to support glass, metal, or other cladding solutions. These facades has become a popular choice for the high rise commercial and residential towers, institutional and Monumental building, Shopping malls and Hotel development and  to enhance both the aesthetics and functionality of the building.

A building's façade is considered to be the most vital aspect from a design point of view., since it sets the tone for entire building. Curtail wall system is an external covering of a building, mainly used to maintain the building from unusual outdoor elements and to protect the building's exterior.

CW system is mainly constructed from aluminium profiles, made of lightweight material and most importantly they stand on their own


Features and Benefits

 - Environmental sustainability and friendly
 - Structural framework
 - Window glazing
 - Excellent Thermal Performance
 - Weather resistance and providing effective       protection against moisture and air infiltration
 - Aesthetics benefits with options for different   colours, finishes, and patterns
 - Environmental sustainability and friendly
 Sound insulation and noise reduction.


.

X
Customization

Tailor your sliding windows to your specific needs with our customization options, including  grid patterns,
and glass choices :-
* Toughened glass or laminated safety glass.
* Tinted in a range of colours
and Finish Colour : -
* Wood Grain,
* Anodized Finishes,
* Fluoropolymer Finishes,
* Powder Coat Finishes,


X
X

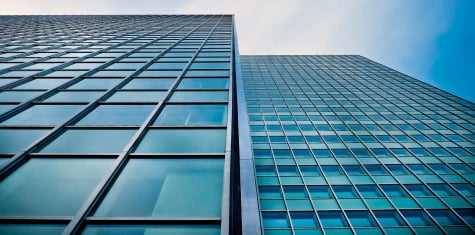

Stick Curtain Wall

In this type of curtain wall system, the components are assembled piece by piece on the structure of the building. This system is mainly used for low-rise buildings or in small regions. This is due to the fact that for reaching higher elevations it is important to have exterior access.

The Stick System is a curtain walling system consisting normally of extruded aluminium transoms (anchored to a slab or sub structure) and mullions known as “sticks” which are cut to length in the factory prior to assembly on site which may compromise of mechanically held fixed or open glazing (single pane or double glazed units), metal insulated panels (aluminium, stainless steel, aluminium, titanium etc.) or stone insulated panels (marble, granite etc.)





X

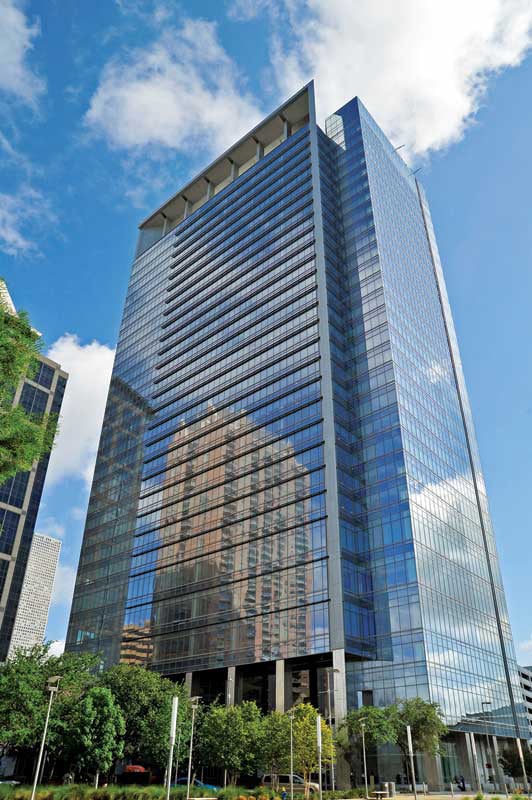

Unitized Curtain Wall

Unitized curtain wall systems involves assembling by means of interlocking units that are bought from the factory. The whole components are bought together as a single unit from the factory. Individual installation of each component are not necessary as in sticky curtain wall system. The size of the unitized curtain walls are dependent on the floor to floor height of the building.

The unitized curtain wall is built in the production warehouse enabling an elevated level of quality control during assembly, therefore reducing installation time and cost.

Usually panels extend from floor to floor and are anchored to the load-bearing structure of the building through different fasteners. The frame of the panel is made of extruded aluminium profiles.

The blind or glazed element is fixed onto the frame by means of mechanical fasteners or glue with structural silicon.
Profiles have male-female joints and are provided with gaskets to ensure that the façade is weather-tight.

They are designed in such a way that the façade can preserve all of its functions also following the inevitable movements of the supporting structure of the building and the thermal expansion of the elements.

.

X
